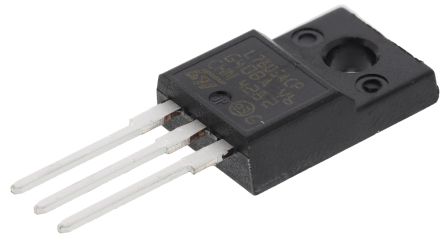

STMicroelectronics L7805ACP Linear Voltage Regulator, 1A, 5 V, 2% 3-Pin, TO-220FP [L7805ACP]; 686-9723
0₫
Mã kho: 6869723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 V |
| Maximum Output Current | 1A |
| Package Type | TO-220FP |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Maximum Input Voltage | 35 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +150 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Width | 4.6mm |
| Length | 10.4mm |
| Accuracy | 0.02 |
| Load Regulation | 100 mV |
| Line Regulation | 50 mV |
| Dimensions | 10.4 x 4.6 x 9.3mm |
| Quiescent Current | 4.3mA |
| Typical Dropout Voltage @ Current | 2 V @ 1 A |
| Series | L78xx |
| Height | 9.3mm |
