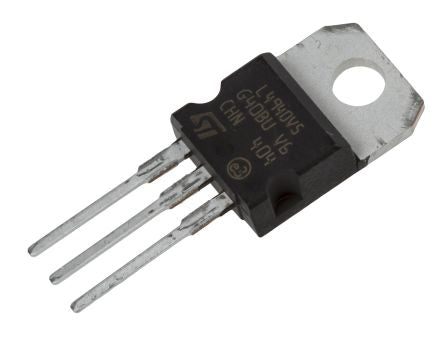

STMicroelectronics L4940V5, LDO Regulator, 1.5A, 5 V 3-Pin, TO-220 [L4940V5]; 168-6058
0₫
Mã kho: 1686058
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 V |
| Output Type | Fixed |
| Package Type | TO-220 |
| Maximum Output Current | 1.5A |
| Mounting Type | Through Hole |
| Maximum Input Voltage | 17 V |
| Pin Count | 3 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 5mA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Line Regulation | 10 mV |
| Height | 9.15mm |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Load Regulation | 25 mV |
| Width | 4.6mm |
| Length | 10.4mm |
