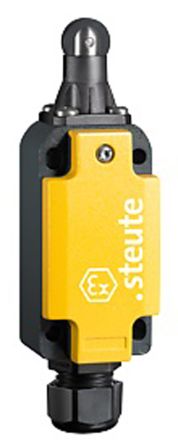

IP66 Positive Break, Slow Action Limit Switch Roller/Plunger Aluminium, 2NC, 250V [Ex ES 98 R -02 -40C]; 136-5927
by Steute
0₫
Mã kho: 1365927
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller/Plunger |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 2NC |
| IP Rating | IP66 |
| Maximum Current | 4.4 (T6) A, 6.6 (T5) A |
| Housing Material | Aluminium |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 125V |
| Connection Type | Cable |
| Series | Ex 98 |
| Contact Type | Positive Break, Slow Action |
| Terminal Type | Screw |
| Length | 1016mm |
| Width | 3022.6mm |
| Hazardous Area Certification | IECEx |
| Maximum Operating Temperature | +70°C |
| Dimensions | 1016 x 3022.6 x 1092.2 mm |
| Minimum Operating Temperature | -40°C |
| Mounting Orientation | Vertical |
| Standards Met | EAC, EN 50047, EN 60079-0, EN 60079-1, EN 60079-14, EN 60079-31, EN 60079-7, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119, EX II 2D Ex tb IIIC T80 °C Db, EX II 2G Ex db eb IIC T6 Gb, Ex tb IIIC T80 °C Db, IECEx Ex db eb IIC T6 Gb |
| Depth | 1092.2mm |
| Mechanical Life Minimum | >1000000 operations |
