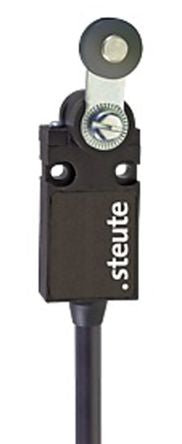

IP65 Positive Break, Slow Action Limit Switch Lever Glass-Fibre, Thermoplastic, 2NC, 250V [Ex 14 D 2O-5m]; 136-5909
by Steute
0₫
Mã kho: 1365909
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 2NC |
| IP Rating | IP65 |
| Maximum Current | 6 A @ 250 V ac, 250 mA @ 230 V dc |
| Housing Material | Glass-Fibre, Thermoplastic |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 230V |
| Connection Type | Cable |
| Series | Ex 14 |
| Contact Type | Positive Break, Slow Action |
| Length | 762mm |
| Width | 838.2mm |
| Mechanical Life Minimum | >1000000 operations |
| Hazardous Area Certification | IECEx |
| Mounting Orientation | Vertical |
| Depth | 2311.4mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +75°C |
| Dimensions | 762 x 838.2 x 2311.4 mm |
| Standards Met | CCC, CSAus, EAC, EN 50047, EN 60079-0, EN 60079-1, EN 60079-31, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119, EX II 2D Ex tb IIIC T80 °C/T95 °C Db, EX II 2G Ex db IIC T6/T5 Gb, Ex tb IIIC T80 °C/T95 °C Db, IECEx Ex db IIC T6/T5 Gb |
