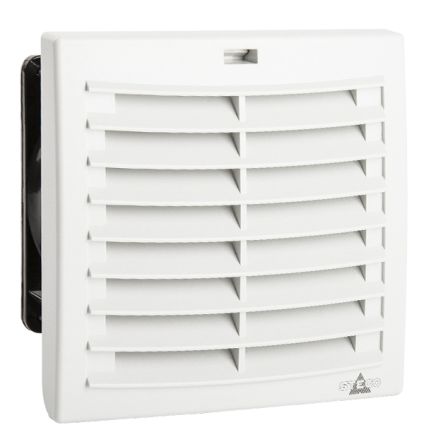

Filter Fan, 124 x 124mm, 56m³/h, 48 V dc, IP54 [01871.1-30]; 182-9843
by STEGO
0₫
Mã kho: 1829843
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Unimpeded Air Flow | 67m³/h |
| Noise Level | 52dB |
| Filtered Air Flow | 56m³/h |
| Input Current | 88mA |
| Input Power Rating | 4.2W |
| AC or DC Operation | DC |
| Face Dimensions | 124 x 124mm |
| Installation Depth | 66mm |
| Supply Voltage | 48 V dc |
| Face Height | 124mm |
| Face Width | 124mm |
| Series | FPI/FPO 018 |
| Special Features | Protection Type Test/Environmental Rating by Independent Testing Institutes (VDE and UL), Two Systems for Optimal Airflow (FPI/FPO) |
| IP Rating | IP54 |
| Configuration | Square |
| Bearing Type | Ball |
| Termination Type | Screw |
