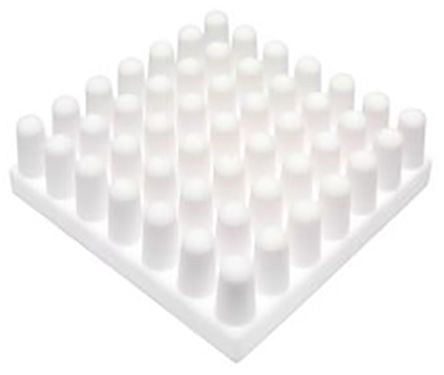

Heatsink, 15.4 °C/W @ 100 lfm, 7.7 °C/W @ 400 lfm, 35 x 35 x 10mm, Adhesive, Screw [SF-CHS-353510-PC]; 123-5636
by SPREADFAST
0₫
Mã kho: 1235636
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| For Use With | Universal Square Ceramic |
| Length | 35mm |
| Width | 35mm |
| Height | 10mm |
| Dimensions | 35 x 35 x 10mm |
| Thermal Resistance | 7.7 °C/W @ 400 lfm, 15.4 °C/W @ 100 lfm |
| Mounting | Adhesive, Screw |
| Colour | White |
| Series | Ceramic Heat Spreader Circular Pin Fin |
| Special Features | Good EMC, Good Heat Spreader, Good Thermal Cycling Stability, High Breakdown Voltage, High Volume Resistivity, Ideal for Direct Metalisation, Lower Density |
| Application | Chipset, Cooling, IC Cooling, LED, Metal Heat Sink Replacement, Power Modules |
