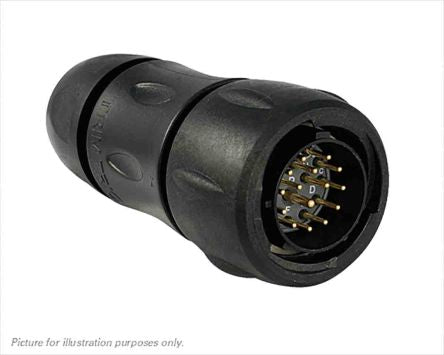

Souriau UTS Series, 15 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 14, Bayonet [UTS6JC14E15P]; 848-8108
by Souriau
0₫
Mã kho: 8488108
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Contact Gender | Male |
| Current Rating | 7.5 (Size 20) A, 13 (Size 16) A |
| Voltage Rating | 600 V |
| Shell Size | 14 |
| Mounting Type | Cable Mount |
| Military Standard | MIL-DTL-26482 |
| Termination Method | Solder |
| IP Rating | IP68, IP69K |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Body Orientation | Straight |
| Series | UTS |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
