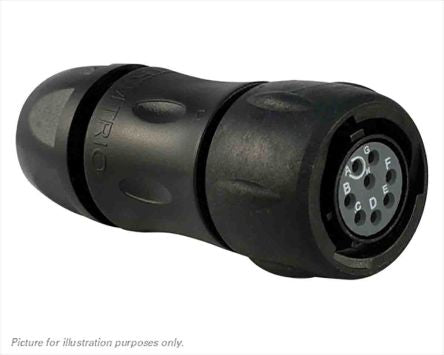

Souriau UTS Series, 8 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 12, Bayonet [UTS6JC12E8S]; 848-8170
by Souriau
0₫
Mã kho: 8488170
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 8 |
| Gender | Male |
| Contact Gender | Female |
| Current Rating | 7.5A |
| Voltage Rating | 600 V |
| Shell Size | 12 |
| Mounting Type | Cable Mount |
| Military Standard | MIL-DTL-26482 |
| Termination Method | Solder |
| IP Rating | IP68, IP69K |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Body Orientation | Straight |
| Series | UTS |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
