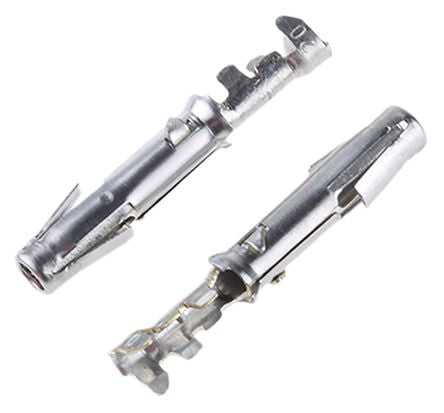

Souriau TRIM TRIO SC Series, size 20 13A Female Crimp Circular Connector Contact, Wire size 22 → 20 AWG [SC20ML 1TK6]; 437-3756
by Souriau
0₫
Mã kho: 4373756
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| Contact Size | 20 |
| Wire Size | 22 → 20 AWG |
| Termination Method | Crimp |
| Series | TRIM TRIO SC |
| Contact Type | Signal |
| Current Rating | 13A |
| Length | 19mm |
| Contact Plating | Tin |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 6mΩ |
| Mounting Type | Cable Mount |
