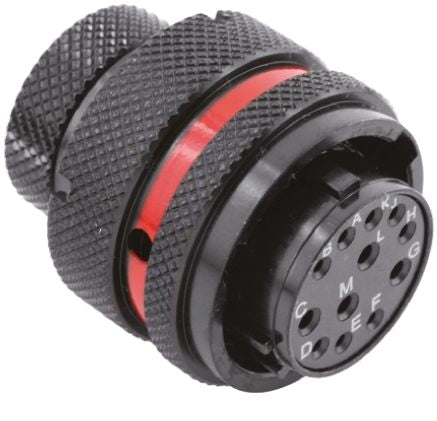

Souriau 8STA Series Female Cable Mount Connector, 12 contacts Plug [8STA61497SN]; 760-1486
by Souriau
0₫
Mã kho: 7601486
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 12 |
| Plug/Socket | Plug |
| Mounting Type | Cable Mount |
| Connector Size | Standard |
| Termination Method | Crimp, PC Tail |
| Shell Size | 14 |
| Current Rating | 7.5 A, 13.0A |
| IP Rating | IP67 |
| Contact Gender | Female |
| Mating Type | Bayonet |
| Body Orientation | Straight |
| Series | 8STA |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Contact Plating | Gold |
