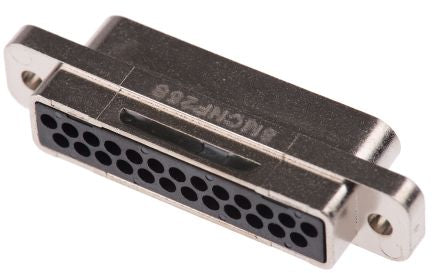

Souriau MicroComp Series 2mm Pitch Straight Micro Miniature D Crimp Connector, Socket, 25 Pin [8MCNF25S011B]; 687-5572
by Souriau
0₫
Mã kho: 6875572
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.0mm |
| Termination Method | Crimp |
| Current Rating | 2.5A |
| Housing Material | Glass Fibre Reinforced Polymer |
| Length | 37.72mm |
| Width | 11.11mm |
| Depth | 7.82mm |
| Dimensions | 37.72 x 11.11 x 7.82mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Maximum Operating Temperature | +175°C |
| Minimum Operating Temperature | -55.0°C |
| Series | microComp |
| Contact Size | 26 |
