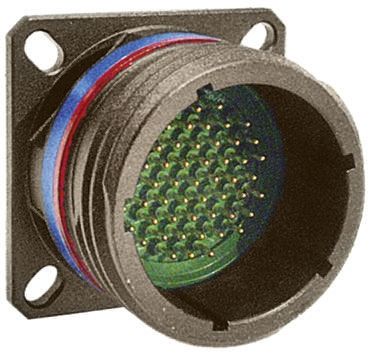

Souriau 8D Series, 37 Way MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 15, Screw Coupling [8D3415F35AN]; 715-9213
by Souriau
0₫
Mã kho: 7159213
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 37 |
| Gender | Female |
| Contact Gender | Male |
| Current Rating | 5A |
| Shell Size | 15 |
| Military Standard | MIL-DTL-38999 |
| Termination Method | Crimp |
| IP Rating | IP67 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Body Orientation | Straight |
| Series | 8D |
| Minimum Operating Temperature | -65°C |
| Housing Material | Aluminium |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +200°C |
| Shell Plating | Nickel |
| Contact Material | Copper Alloy |
