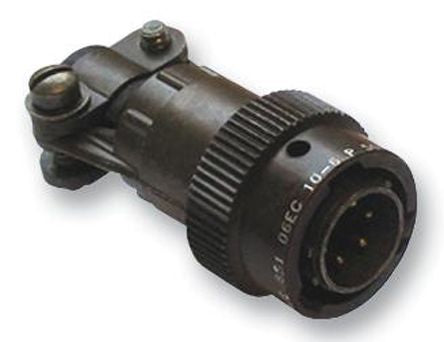

Souriau 851 Series, 6 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 10, Bayonet Coupling [85106EC106P50]; 687-6658
by Souriau
0₫
Mã kho: 6876658
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 6 |
| Gender | Male |
| Contact Gender | Male |
| Current Rating | 7.5A |
| Shell Size | 10 |
| Mounting Type | Cable Mount |
| Military Standard | MIL-DTL-26482 |
| Termination Method | Solder |
| Mating Type | Bayonet Coupling |
| Body Orientation | Straight |
| Series | 851 |
| Contact Plating | Gold |
| Minimum Operating Temperature | -55°C |
| Shell Plating | Olive Drab Cadmium |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +125°C |
