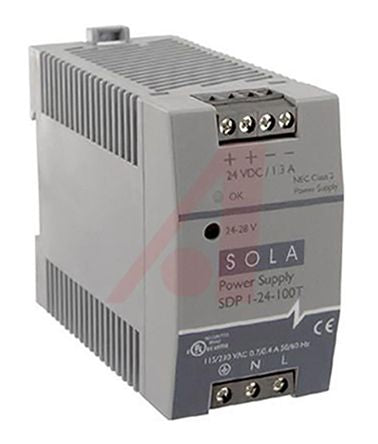

SolaHD, SDP DIN Rail Power Supply, 24V dc Output Voltage, 1.3A Output Current [SDP1-24-100T]; 890-8949
by SolaHD
0₫
Mã kho: 8908949
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264V ac |
Output Voltage | 24 V dc |
Output Current | 1.3 A |
Power Rating | 31W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Height | 75mm |
Width | 75mm |
Maximum Temperature | +60°C |
Minimum Temperature | -10°C |
Depth | 91mm |
Mounting Type | DIN Rail Mount |
Special Features | Continuous Short Circuit Protection, Low Output Noise |
MTBF | >500000h |
Standards Met | CE, CRUus, CULus, RoHS Compliant |
Series | SDP |
Ripple And Noise | <50mV Pk-Pk |
