![SolaHD SCP30S24B-DN 8913389](http://nguyenxuong.com/cdn/shop/products/R8913389-01_386x444.jpg?v=1594351451)

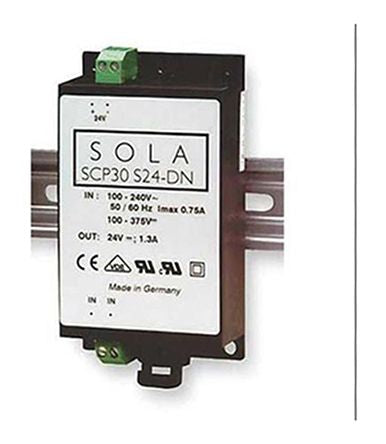

SolaHD, SCP DIN Rail Power Supply, 24V dc Output Voltage, 1.3A Output Current [SCP30S24B-DN]; 891-3389
by SolaHD
0₫
Mã kho: 8913389
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264V ac |
Output Voltage | 24 V dc |
Output Current | 1.3 A |
Power Rating | 30W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Height | 113mm |
Width | 68mm |
Ripple And Noise | 1 (Ripple) %, 2 (Noise) % |
MTBF | 800000h |
Mounting Type | DIN Rail Mount |
Depth | 68mm |
Minimum Temperature | -25°C |
Standards Met | Class II, CUL, EN 50082-2, EN 55011 Class B, EN 55022 Class B, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, UL 1950, VDE 0805 |
Series | SCP |
Maximum Temperature | +65°C |
