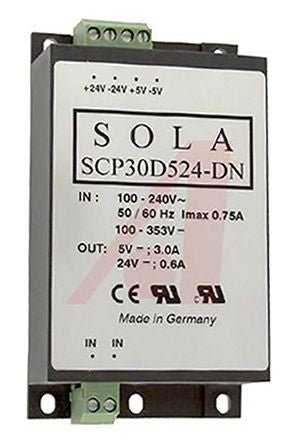

SolaHD, SCP DIN Rail Power Supply, 5 V dc, 24 V dc Output Voltage, 3 A, 600 mA Output Current [SCP30D524-DN]; 890-8930
by SolaHD
0₫
Mã kho: 8908930
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 5 V dc, 24 V dc |
| Output Current | 3 A, 600 mA |
| Power Rating | 30W |
| Number of Outputs | 2 |
| Electrical Phase | 1 |
| Height | 120mm |
| Width | 33mm |
| Minimum Temperature | -25°C |
| Mounting Type | DIN Rail Mount |
| Depth | 33mm |
| Maximum Temperature | +65°C |
| MTBF | 800000h |
| Standards Met | Class II, CUL, EN 50082-2, EN 55011 Class B, EN 55022 Class B, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, UL 1950, VDE 0805 |
| Ripple And Noise | 1 (Ripple) %, 2 (Noise) % |
| Series | SCP |
