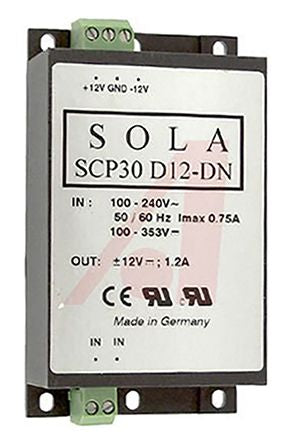

SolaHD, SCP DIN Rail Power Supply, ±12V dc Output Voltage, 1.2A Output Current [SCP30D12-DN]; 890-8915
by SolaHD
0₫
Mã kho: 8908915
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
AC or DC Input Voltage | Ac, Dc |
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264V ac |
Output Voltage | ±12 V dc |
Output Current | 1.2 A |
Power Rating | 30W |
Number of Outputs | 2 |
Electrical Phase | 1 |
Height | 120mm |
Width | 33mm |
Series | SCP |
Maximum Temperature | +65°C |
Standards Met | Class II, CUL, EN 50082-2, EN 55011 Class B, EN 55022 Class B, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, UL 1950, VDE 0805 |
Mounting Type | DIN Rail Mount |
MTBF | 800000h |
Depth | 33mm |
Ripple And Noise | 1 (Ripple) %, 2 (Noise) % |
Minimum Temperature | -25°C |
