| Foldable bearing support arms allow larger diameter bearings to be heated, and reduce the risk of the bearing toppling during heating. | Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes |
High heating capacity of up to 40 kg bearing

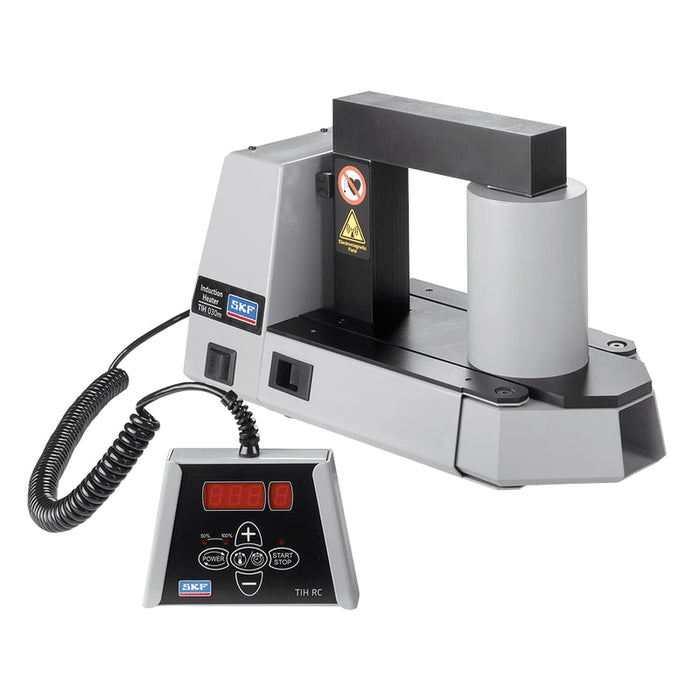

The SKF small induction heater TIH 030m combines high heating capacity with portability. The compact lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater's housing allows the heating of bearings weighing up to 40 kg (88 lb).
The induction heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings.
The induction heating system is supplied standard with three yokes and is available in two executions: 230V/50-60Hz and 100-110V/50-60Hz.
- Compact lightweight design; just 20,9 kg (46.0 lb) facilitating portability
- 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
- Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes
- Temperature mode pre-set at 110 °C (230 °F) to help prevent bearing over-heating
- Automatic demagnetisation
The comprehensive SKF induction heater range can be used for efficiently heating bearings and work pieces, both large and small.
| ACCESSORIES | |
|---|---|
| Designation | Description |
| TIH 030-Y6 | Optional yoke 40 x 40 x 215 mm (1.6 x 1.6 x 8.5 in) |
| TIH 030-Y3 | Optional yoke 20 x 20 x 215 mm (0.8 x 0.8 x 8.5 in) |
| TIH 030-YS | Support yoke set (x2) 45 x 45 x 100 mm (1.8 x 1.8 x 3.9 in) |
| SPARE PARTS | |
|---|---|
| Designation | Description |
| TIH 030-Y7 | Standard yoke 45 x 45 x 215 mm (1.8 x 1.8 x 8.5 in) |
| TIH 030-Y4 | Standard yoke 28 x 28 x 215 mm (1.1 x 1.1 x 8.5 in) |
| TIH 030-Y2 | Standard yoke 14 x 14 x 215 mm (0.5 x 0.5 x 8.5 in) |
| TIH 030-P230V | Power print 230V - 220-240 V, 50-60 Hz |
| TIH 030-P110V | Power print 110V - 100-120 V, 50-60 Hz |
| TIH CP | Control print |
| TIH RC | Remote control |
| TIH CB10A | Circuit breaker 10A for TIH 030M/230V |
| TIH CB20A | Circuit breaker 20A for TIH 030M/110V |
| TIH P20 | Temperature probe, K-type including cable and plug |
| LGAF 3E/0.035 | Tube of anti-fretting paste for heater maintenance |
