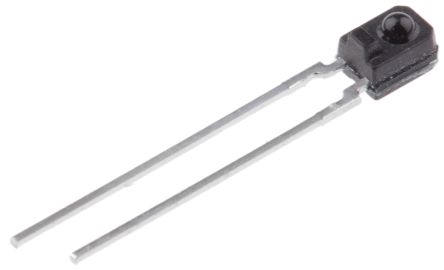

PT480FE0000F Sharp, 26 ° Phototransistor, Through Hole 2-Pin Side Looker package [PT480FE0000F]; 170-2390
by Sharp
0₫
Mã kho: 1702390
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Typical Fall Time | 3.5µs |
| Typical Rise Time | 3µs |
| Number of Channels | 1 |
| Maximum Light Current | 3000µA |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | 26 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | Side Looker |
| Dimensions | 3 x 2.95 x 4mm |
| Collector Current | 20mA |
| Width | 2.95mm |
| Length | 3mm |
| Minimum Wavelength Detected | 860nm |
| Height | 4mm |
