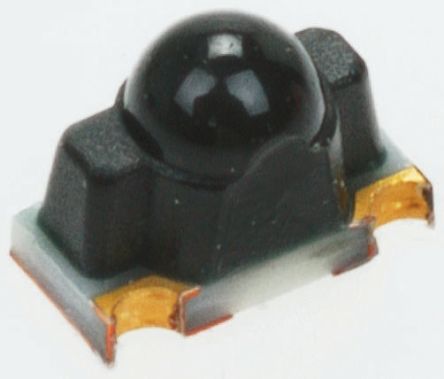

PT100MF0MP1 Sharp, 30 ° IR Phototransistor, Surface Mount 2-Pin [PT100MF0MP1]; 477-6335
by Sharp
0₫
Mã kho: 4776335
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 6µs |
| Typical Rise Time | 5µs |
| Number of Channels | 1 |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | 30 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Dimensions | 3 x 1.5 x 2.2mm |
| Collector Current | 20mA |
| Maximum Wavelength Detected | 910nm |
| Length | 3mm |
| Height | 2.2mm |
| Minimum Wavelength Detected | 910nm |
| Width | 1.5mm |
| Spectral Range of Sensitivity | Maximum of 910 nm |
