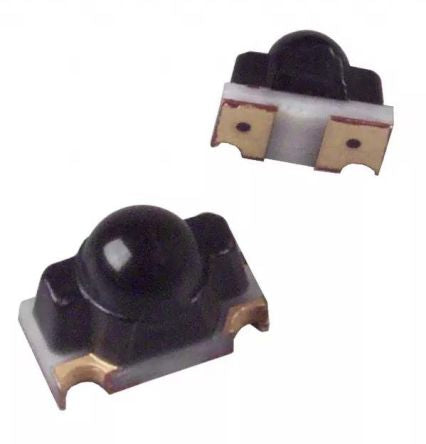

PT100MF0MP Sharp, PT100 ±15 ° IR Phototransistor, Surface Mount 2-Pin SMD package [PT100MF0MP]; 146-0778
by Sharp
0₫
Mã kho: 1460778
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 6µs |
| Typical Rise Time | 5µs |
| Number of Channels | 1 |
| Maximum Light Current | 3.45mA |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | ±15 ° |
| Polarity | Positive |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | SMD |
| Dimensions | 3 x 1.5 x 2.2mm |
| Collector Current | 20mA |
| Output Signal Type | Analogue |
| Spectral Range of Sensitivity | Maximum of 910 nm |
| Emitter Collector Voltage | 6V |
| Saturation Voltage | 0.4V |
| Collector Emitter Voltage | 35V |
| Maximum Wavelength Detected | 910nm |
| Series | PT100 |
| Length | 3mm |
| Width | 1.5mm |
| Height | 2.2mm |
