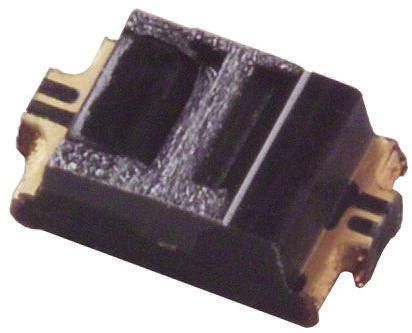

GP2S60 Sharp, SMT Reflective Sensor, Phototransistor Output [GP2S60]; 170-2453
by Sharp
0₫
Mã kho: 1702453
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Sensor Distance | 0.7mm |
| Output Device | Phototransistor |
| Typical Rise Time | 20µs |
| Typical Fall Time | 20µs |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Mounting Type | Surface Mount |
| Package Type | SMD |
| Dimensions | 3.2 x 1.7 x 1.1mm |
| Height | 1.1mm |
| Length | 3.2mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Width | 1.7mm |
| Operating Temperature Range | -25 → +85°C |
