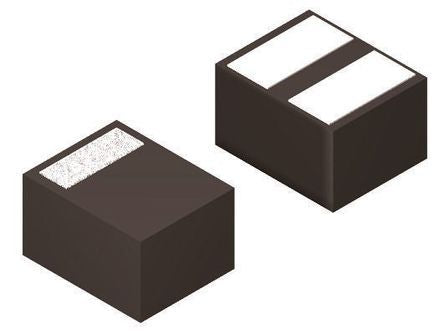

Semtech UCLAMP3311P.TCT, Bi-Directional TVS Diode, 90W, 2-Pin SLP EP [UCLAMP3311P.TCT]; 691-0697
by Semtech
0₫
Mã kho: 6910697
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 18V |
Mounting Type | Surface Mount |
Package Type | SLP EP |
Maximum Reverse Stand-off Voltage | 3.3V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 90W |
Maximum Peak Pulse Current | 5A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Length | 1mm |
Height | 0.47mm |
Maximum Reverse Leakage Current | 500nA |
Dimensions | 1 x 0.6 x 0.47mm |
Width | 0.6mm |
