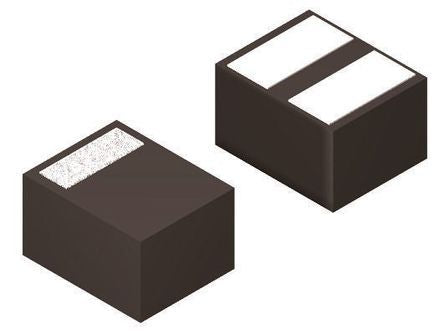

Semtech UCLAMP3301D.TCT, Triple Uni-Directional TVS Diode, 100W, 2-Pin SOD-323 [UCLAMP3301D.TCT]; 921-0095
by Semtech
0₫
Mã kho: 9210095
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 9.5V |
| Minimum Breakdown Voltage | 3.5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 10A |
| ESD Protection | Yes |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| ESD Voltage | 30kV |
| Capacitance | 50pF |
| Length | 1.78mm |
| Dimensions | 1.78 x 1.37 x 1.07mm |
| Maximum Reverse Leakage Current | 500nA |
| Width | 1.37mm |
| Test Current | 2µA |
| Height | 1.07mm |
