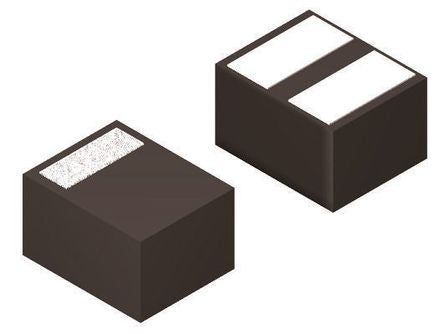

Semtech UCLAMP1201P.TCT, Uni-Directional TVS Diode, 200W, 2-Pin SLP EP [UCLAMP1201P.TCT]; 691-0694
by Semtech
0₫
Mã kho: 6910694
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 25V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SLP EP |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 200W |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1mm |
| Dimensions | 1 x 0.6 x 0.47mm |
| Width | 0.6mm |
| Test Current | 1mA |
| Height | 0.47mm |
| Maximum Reverse Leakage Current | 1µA |
