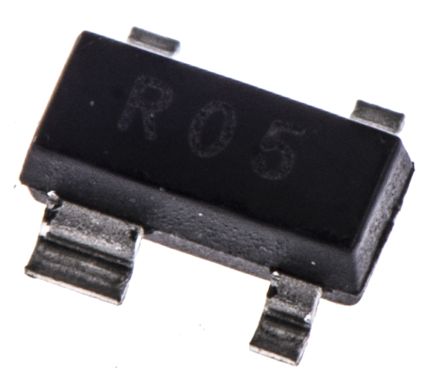

![Semtech SR05.TCT 1700847](http://nguyenxuong.com/cdn/shop/products/F6910868-01_956e05e9-8210-42ab-bc85-1e0e0f5765fe_444x382.jpg?v=1594125863)
Semtech SR05.TCT, Uni-Directional TVS Diode Array, 500W, 4-Pin SOT-143 [SR05.TCT]; 170-0847
by Semtech
0₫
Mã kho: 1700847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Uni-Directional |
Diode Configuration | Single |
Maximum Clamping Voltage | 20V |
Minimum Breakdown Voltage | 6V |
Mounting Type | Surface Mount |
Package Type | SOT-143 |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 4 |
Peak Pulse Power Dissipation | 500W |
Maximum Peak Pulse Current | 25A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +125 °C |
Height | 1.07mm |
Length | 3.04mm |
Test Current | 1mA |
Maximum Reverse Leakage Current | 5µA |
Dimensions | 3.04 x 1.4 x 1.07mm |
Width | 1.4mm |
