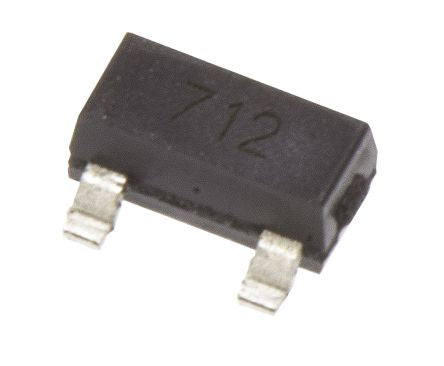

Semtech SM712.TCT, Dual Bi-Directional TVS Diode, 400W, 3-Pin SOT-23 [SM712.TCT]; 691-0811
by Semtech
0₫
Mã kho: 6910811
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Series |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 26V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 17A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Test Current | 1mA |
| Dimensions | 2.9 x 1.3 x 0.95mm |
| Width | 1.3mm |
| Length | 2.9mm |
| Maximum Reverse Leakage Current | 20µA |
| Height | 0.95mm |
