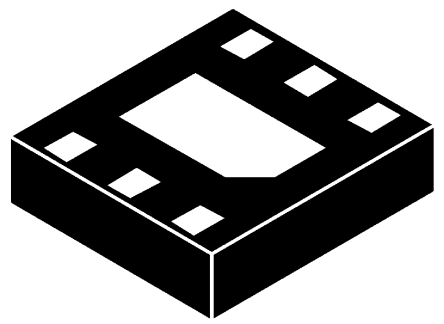

Semtech RCLAMP3654P.TCT, Dual Uni-Directional TVS Diode Array, 350W, 6-Pin SLP EP [RCLAMP3654P.TCT]; 691-0669
by Semtech
0₫
Mã kho: 6910669
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Complex Array |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 30V |
Minimum Breakdown Voltage | 6.5V |
Mounting Type | Surface Mount |
Package Type | SLP EP |
Maximum Reverse Stand-off Voltage | 5.5V |
Pin Count | 6 |
Peak Pulse Power Dissipation | 350W |
Maximum Peak Pulse Current | 4A |
ESD Protection | Yes |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +125 °C |
Width | 1.6mm |
Dimensions | 1.6 x 1.6 x 0.55mm |
Maximum Reverse Leakage Current | 1µA |
Height | 0.55mm |
Length | 1.6mm |
Test Current | 1mA |
