Discrete Semiconductors > TVS Diodes

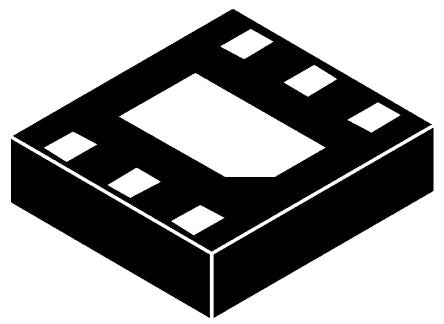

Semtech RCLAMP0504PATCT, 9-Element Uni-Directional TVS Diode, 150W, 6-Pin SLP1616P6 [RCLAMP0504PATCT]; 146-0610

by Semtech
0₫
(Giá chưa VAT).
Mã kho: 1460610

Mã nhà sản xuất: RCLAMP0504PATCT

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Diode Configuration Single
Direction Type Uni-Directional
Maximum Clamping Voltage 25V
Minimum Breakdown Voltage 6V
Mounting Type Surface Mount
Package Type SLP1616P6
Maximum Reverse Stand-off Voltage 5V
Pin Count 6
Peak Pulse Power Dissipation 150W
Maximum Peak Pulse Current 6A
ESD Protection Yes
Number of Elements per Chip 9
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +125 °C
ESD Voltage 8kV
Working Voltage 5V
Dimensions 1.7 x 1.7 x 0.6mm
Capacitance 3pF
Length 1.7mm
Maximum Reverse Leakage Current 3µA
Test Current 1mA
Width 1.7mm
Height 0.6mm
