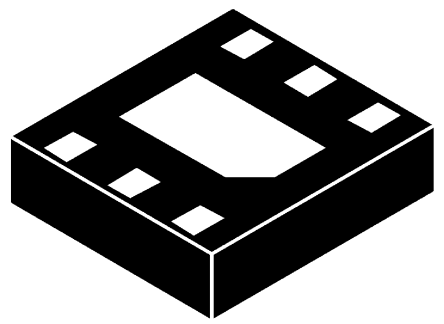

![Semtech RCLAMP0504P.TCT 1460601](http://nguyenxuong.com/cdn/shop/products/L0396506-01_0c4591f3-6ce5-4b03-a3dd-ef23f1edcc41_444x324.gif?v=1594443760)
Semtech RCLAMP0504P.TCT, Uni-Directional TVS Diode Array, 150W, 6-Pin SLP EP [RCLAMP0504P.TCT]; 146-0601
by Semtech
0₫
Mã kho: 1460601
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 25V |
Minimum Breakdown Voltage | 6V |
Mounting Type | Surface Mount |
Package Type | SLP EP |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 6 |
Peak Pulse Power Dissipation | 150W |
Maximum Peak Pulse Current | 6A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +125 °C |
Length | 1.6mm |
Maximum Reverse Leakage Current | 3µA |
Test Current | 1mA |
Width | 1.6mm |
Dimensions | 1.6 x 1.6 x 0.55mm |
Height | 0.55mm |
