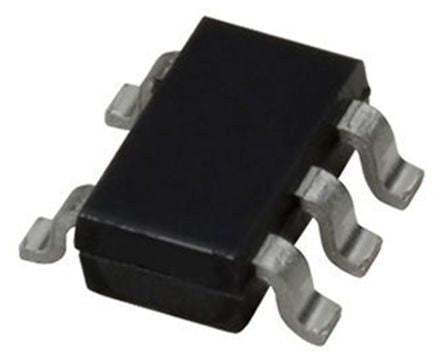

Semtech RCLAMP0503F.TCT, Uni-Directional TVS Diode Array, 150W, 5-Pin SOT-353 (SC-70) [RCLAMP0503F.TCT]; 691-0650
by Semtech
0₫
Mã kho: 6910650
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 25V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOT-353 (SC-70) |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 5 |
| Peak Pulse Power Dissipation | 150W |
| Maximum Peak Pulse Current | 6A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 1.25mm |
| Length | 2mm |
| Maximum Reverse Leakage Current | 3µA |
| Dimensions | 2 x 1.25 x 0.9mm |
| Test Current | 1mA |
| Height | 0.9mm |
