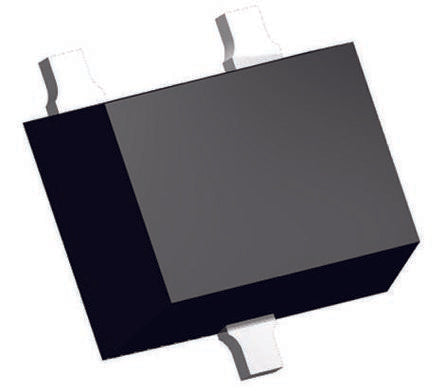

Semtech RCLAMP0502A.TCT, Uni-Directional TVS Diode Array, 50W, 6-Pin SOT-523 [RCLAMP0502A.TCT]; 691-0641
by Semtech
0₫
Mã kho: 6910641
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 18V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOT-523 (SC-89) |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 50W |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.6mm |
| Dimensions | 1.6 x 1.2 x 0.6mm |
| Height | 0.6mm |
| Test Current | 1mA |
| Width | 1.2mm |
| Maximum Reverse Leakage Current | 1µA |
