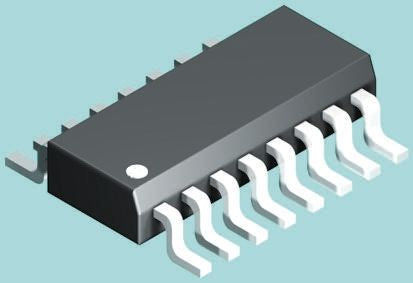

Semtech LCDA12C-8.TBT, Octal Bi-Directional TVS Diode, 500W, 16-Pin SOIC [LCDA12C-8.TBT]; 691-0767
by Semtech
0₫
Mã kho: 6910767
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Isolated |
| Maximum Clamping Voltage | 26.6V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 16 |
| Peak Pulse Power Dissipation | 500W |
| Maximum Peak Pulse Current | 20A |
| ESD Protection | Yes |
| Number of Elements per Chip | 8 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 4mm |
| Length | 10mm |
| Height | 1.5mm |
| Test Current | 1mA |
| Dimensions | 10 x 4 x 1.5mm |
| Maximum Reverse Leakage Current | 5µA |
