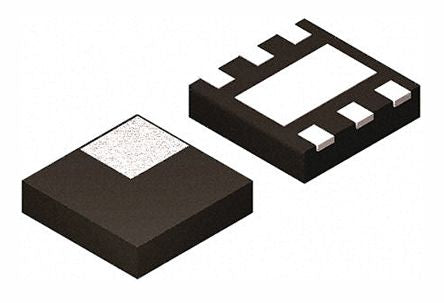

Semtech ECLAMP2522P.TCT, Quad Bi-Directional EMI Filter & ESD Protector, 6-Pin SLP EP [ECLAMP2522P.TCT]; 170-0803
by Semtech
0₫
Mã kho: 1700803
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Bi-Directional |
Diode Configuration | Complex Array |
Minimum Breakdown Voltage | 6V |
Mounting Type | Surface Mount |
Package Type | SLP EP |
Maximum Reverse Stand-off Voltage | 5.5V |
Pin Count | 6 |
ESD Protection | Yes |
Number of Elements per Chip | 4 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Length | 1.6mm |
Dimensions | 1.6 x 1.6 x 0.58mm |
Maximum Reverse Leakage Current | 1µA |
Test Current | 1mA |
Width | 1.6mm |
Height | 0.58mm |
