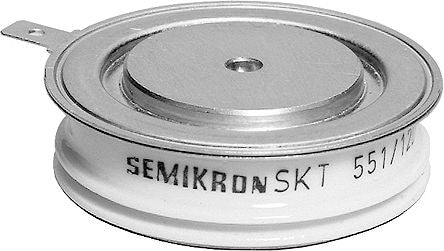

Semikron, SKT 551/16 E, Thyristor, 1600V 391A, 250 (Min)mA 3-Pin, B 11 [SKT 551/16 E]; 905-6162
by Semikron
0₫
Mã kho: 9056162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 391A |
| Thyristor Type | SCR |
| Package Type | B 11 |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 9000A |
| Mounting Type | Panel Mount |
| Maximum Gate Trigger Current | 250 (Min)mA |
| Maximum Gate Trigger Voltage | 3 (Min)V |
| Maximum Holding Current | 500mA |
| Pin Count | 3 |
| Height | 14mm |
| Dimensions | 41.5 (Dia.) x 14mm |
| Repetitive Peak Off-State Current | 60mA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Peak On-State Voltage | 1.65V |
| Diameter | 41.5mm |
