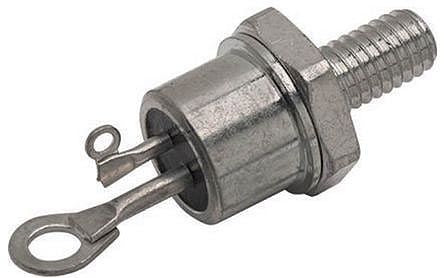

Semikron, SKT 24/12 E, Thyristor, 1200V 22A, 100 (Min)mA 3-Pin, B 2 [SKT 24/12 E]; 905-6037
by Semikron
0₫
Mã kho: 9056037
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 22A |
| Thyristor Type | SCR |
| Package Type | B 2 |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 450A |
| Mounting Type | Thread Mount |
| Maximum Gate Trigger Current | 100 (Min)mA |
| Maximum Gate Trigger Voltage | 3 (Min)V |
| Maximum Holding Current | 150mA |
| Pin Count | 3 |
| Height | 41mm |
| Dimensions | 14 (Dia.) x 41mm |
| Maximum Operating Temperature | +130 °C |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 8mA |
| Peak On-State Voltage | 1.9V |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Diameter | 14mm |
