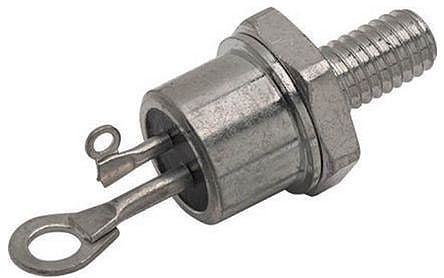

Semikron, SKT 16/16 E, Thyristor, 1600V 18A, 150 (Min)mA 7-Pin, A 46 [SKT 16/16 E]; 905-6074
by Semikron
0₫
Mã kho: 9056074
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 18A |
| Thyristor Type | SCR |
| Package Type | A 46 |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 2000A |
| Mounting Type | Thread Mount |
| Maximum Gate Trigger Current | 150 (Min)mA |
| Maximum Gate Trigger Voltage | 3 (Min)V |
| Maximum Holding Current | 250mA |
| Pin Count | 7 |
| Length | 93mm |
| Width | 20mm |
| Height | 30mm |
| Dimensions | 93 x 20 x 30mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.64V |
| Repetitive Peak Off-State Current | 20mA |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 1600V |
