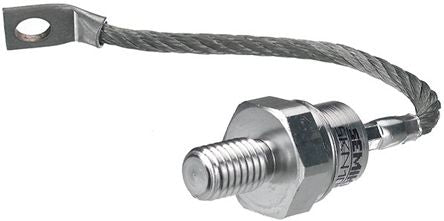

Semikron 1700V 18A, Diode, 2-Pin E 9 SKNa 20/17 [SKNa 20/17]; 905-6024
by Semikron
0₫
Mã kho: 9056024
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Thread Mount |
| Package Type | E 9 |
| Maximum Continuous Forward Current | 18A |
| Peak Reverse Repetitive Voltage | 1700V |
| Diode Configuration | Stud Anode |
| Rectifier Type | High Voltage |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.55V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Diameter | 11mm |
| Peak Non-Repetitive Forward Surge Current | 375A |
