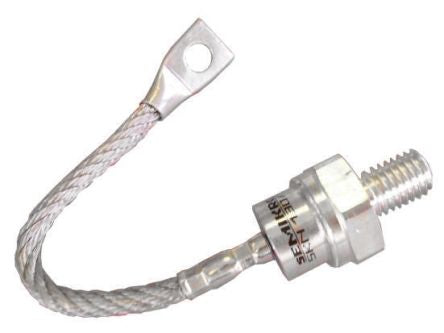

Semikron 1200V 70A, Diode, 2-Pin E 12 SKN 70/12 [SKN 70/12]; 656-451
by Semikron
0₫
Mã kho: 656451
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Stud |
| Package Type | E 12 |
| Maximum Continuous Forward Current | 70A |
| Peak Reverse Repetitive Voltage | 1200V |
| Diode Configuration | Stud Anode |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.5V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 1.2kA |
