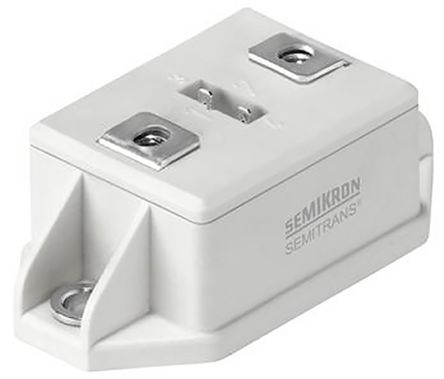

SKM180A020 N-Channel MOSFET, 180 A, 200 V SKM, 4-Pin SEMITRANSM1 Semikron [SKM180A020]; 125-1117
by Semikron
0₫
Mã kho: 1251117
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 180 A |
| Maximum Drain Source Voltage | 200 V |
| Package Type | SEMITRANSM1 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 11 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2.1V |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Height | 29mm |
| Series | SKM |
| Maximum Operating Temperature | +150 °C |
| Width | 42mm |
| Length | 78mm |
