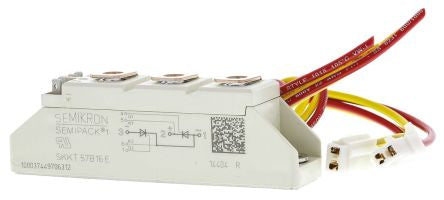

Semikron, SKKT 57B16 E, Dual Thyristor Module SCR, 50A 1600V, 7-Pin Semipack1 [SKKT 57B16 E]; 271-808
by Semikron
0₫
Mã kho: 271808
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR Module |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Gate Trigger Current | 150mA |
| Maximum Holding Current | 250mA |
| Rated Average On-State Current | 50A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 1.5kA |
| Mounting Type | Panel Mount |
| Package Type | SEMIPACK1 |
| Pin Count | 7 |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Repetitive Peak Off-State Current | 15mA |
| Dimensions | 93 x 20 x 30mm |
| Width | 20mm |
| Length | 93mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 30mm |
