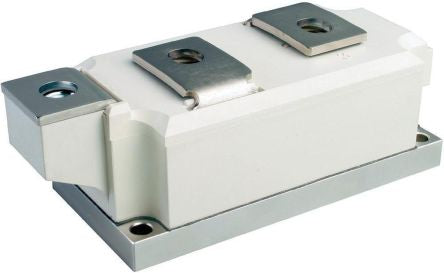

Semikron, SKKT 570/16 E, Dual Thyristor Module, SCR, 570A 1600V, 7-Pin A 46 [SKKT 570/16 E]; 905-6239
by Semikron
0₫
Mã kho: 9056239
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR |
| Maximum Gate Trigger Voltage | 3 (Min)V |
| Maximum Gate Trigger Current | 150 (Min)mA |
| Maximum Holding Current | 250mA |
| Rated Average On-State Current | 570A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 1500A |
| Mounting Type | Panel Mount |
| Package Type | A 46 |
| Pin Count | 7 |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Repetitive Peak Off-State Current | 15mA |
| Dimensions | 93 x 20 x 30mm |
| Width | 20mm |
| Minimum Operating Temperature | -40 °C |
| Height | 30mm |
| Maximum Operating Temperature | +125 °C |
| Length | 93mm |
