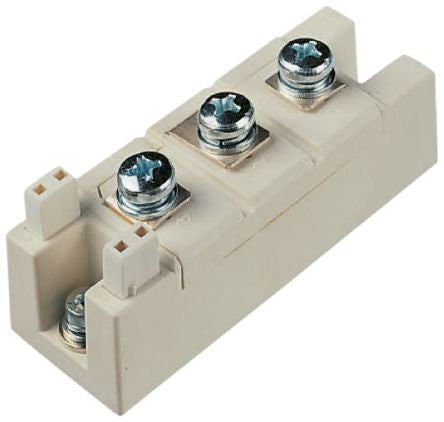

Semikron, SKKH162/18E, Diode/Thyristor Module SCR SCR, 156A 1800V, 5-Pin Semipack2 [SKKH162/18E]; 505-3087
by Semikron
0₫
Mã kho: 5053087
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR Module |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Gate Trigger Current | 150mA |
| Maximum Holding Current | 400mA |
| Rated Average On-State Current | 156A |
| Repetitive Peak Reverse Voltage | 1800V |
| Surge Current Rating | 5.4kA |
| Mounting Type | Panel Mount |
| Package Type | SEMIPACK2 |
| Pin Count | 5 |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Forward Blocking Voltage | 1800V |
| Repetitive Peak Off-State Current | 40mA |
| Dimensions | 94 x 34 x 30mm |
| Length | 94mm |
| Minimum Operating Temperature | -40 °C |
| Width | 34mm |
| Maximum Operating Temperature | +125 °C |
| Height | 30mm |
