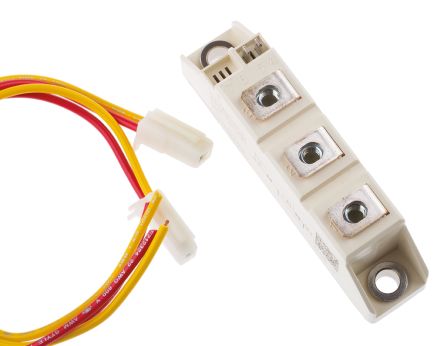

Semikron, SKKH 92/12 E, Diode/Thyristor Module SCR, Diode, SCR, 95A 1200V, 5-Pin Semipack1 [SKKH 92/12 E]; 214-4269
by Semikron
0₫
Mã kho: 2144269
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | Diode, SCR |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Gate Trigger Current | 150mA |
| Maximum Holding Current | 250mA |
| Rated Average On-State Current | 95A |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 2kA |
| Mounting Type | Panel Mount |
| Package Type | SEMIPACK1 |
| Pin Count | 5 |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Repetitive Peak Off-State Current | 20mA |
| Dimensions | 93 x 20 x 30mm |
| Width | 20mm |
| Length | 93mm |
| Maximum Operating Temperature | +125 °C |
| Height | 30mm |
| Minimum Operating Temperature | -40 °C |
