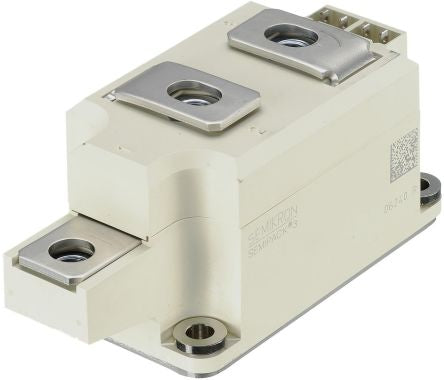

Semikron, SKKH 323/16 E, Diode/Thyristor Module SCR, SCR, 320A 1600V, 5-Pin SEMIPACK3 [SKKH 323/16 E]; 905-6184
by Semikron
0₫
Mã kho: 9056184
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR |
| Maximum Gate Trigger Voltage | 2 (Min)V |
| Maximum Gate Trigger Current | 150 (Min)mA |
| Maximum Holding Current | 500mA |
| Rated Average On-State Current | 320A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 9500A |
| Mounting Type | Panel Mount |
| Package Type | SEMIPACK3 |
| Pin Count | 5 |
| Peak On-State Voltage | 1.45V |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Repetitive Peak Off-State Current | 100mA |
| Dimensions | 115 x 50.3 x 53mm |
| Maximum Operating Temperature | +130 °C |
| Height | 53mm |
| Length | 115mm |
| Width | 50.3mm |
| Minimum Operating Temperature | -40 °C |
