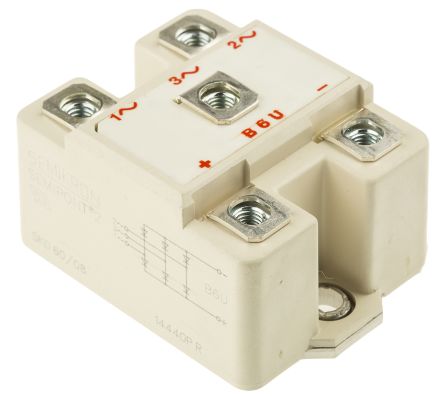

Semikron SKD 60/08, 3-phase Bridge Rectifier Module, 60A 800V, 4-Pin SEMIPONT2 [SKD 60/08]; 263-138
by Semikron
0₫
Mã kho: 263138
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 60A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | Panel Mount |
| Package Type | SEMIPONT2 |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 1kA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.6V |
| Peak Reverse Current | 500µA |
| Length | 65mm |
| Height | 34mm |
| Dimensions | 65 x 48 x 34mm |
| Width | 48mm |
