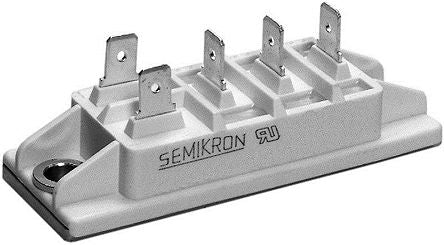

Semikron SKD 51/16, 3-phase Bridge Rectifier Module, 75A 1600V, 5-Pin G 51 [SKD 51/16]; 905-6150
by Semikron
0₫
Mã kho: 9056150
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Three Phase |
| Peak Average Forward Current | 75A |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | G 51 |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 775A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.45V |
| Peak Reverse Current | 4mA |
| Length | 80mm |
| Height | 18mm |
| Width | 29mm |
| Dimensions | 80 x 29 x 18mm |
