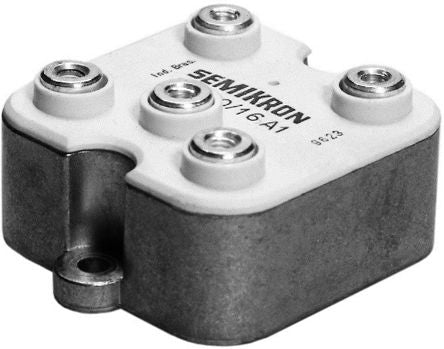

Semikron SKD 30/16 A1, 3-phase Bridge Rectifier Module, 1600V, 5-Pin G 13 [SKD 30/16 A1]; 905-6068
by Semikron
0₫
Mã kho: 9056068
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | G 13 |
| Pin Count | 5 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 1.5kA |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 2.2V |
| Peak Reverse Current | 300µA |
| Length | 55mm |
| Width | 45mm |
| Dimensions | 55 x 45 x 24mm |
| Height | 24mm |
