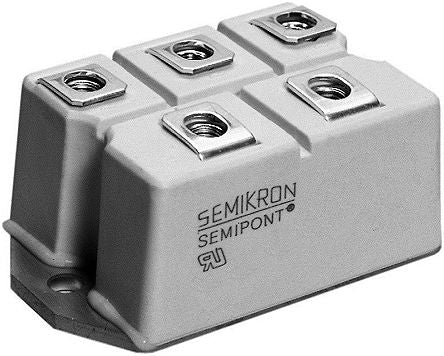

Semikron SKB 72/16, Bridge Rectifier Module, 150A 1600V, 7-Pin G 35 [SKB 72/16]; 905-6229
by Semikron
0₫
Mã kho: 9056229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 150A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | G 35 |
| Pin Count | 7 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 750A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.6V |
| Peak Reverse Current | 6mA |
| Length | 72mm |
| Dimensions | 72 x 42 x 30mm |
| Width | 42mm |
| Height | 30mm |
