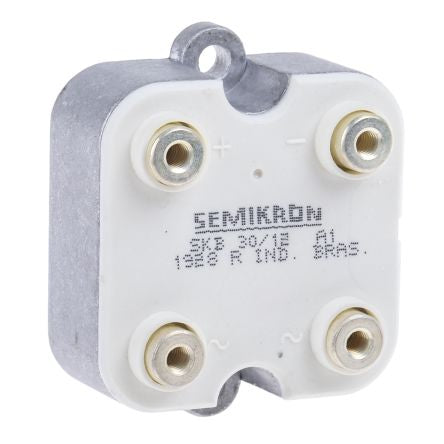

Semikron SKB 30/12 A1, Bridge Rectifier Module, 15A 1200V, 4-Pin G 35 [SKB 30/12 A1]; 905-6125
by Semikron
0₫
Mã kho: 9056125
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 15A |
| Peak Reverse Repetitive Voltage | 1200V |
| Mounting Type | Panel Mount |
| Package Type | G 35 |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 500A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.8V |
| Peak Reverse Current | 5mA |
| Length | 55mm |
| Height | 24mm |
| Width | 45mm |
| Dimensions | 55 x 45 x 24mm |
